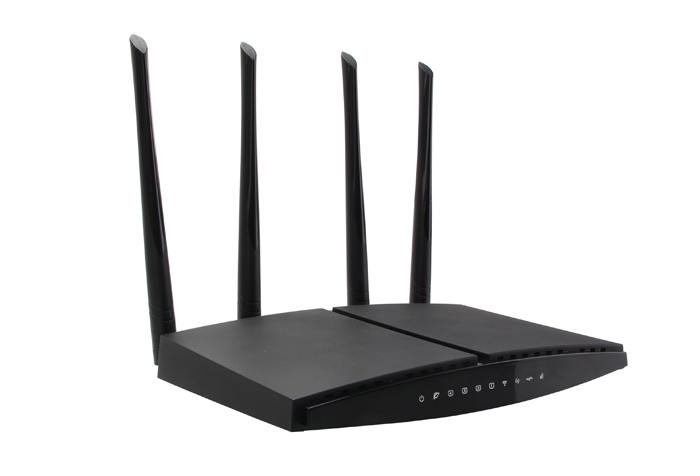

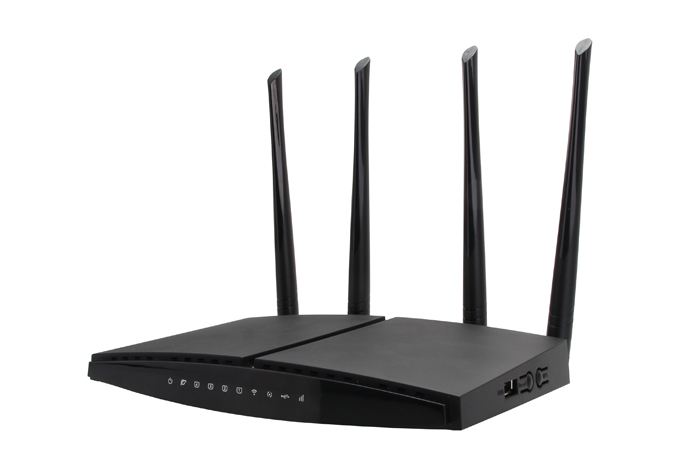

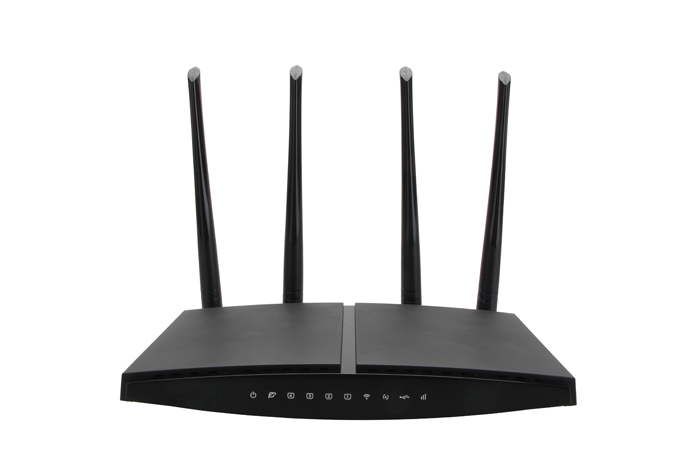

Model: AT-WR952AC
AT-WR952AC leads the way in next generation routers, offering dual-band Gigabit wireless with all-new 802.11ac Wave 2.0 Wi-Fi. Its powerful 1GHz CPU and 128MB DDR3 provide the best performance in both 2.4GHz and 5GHz. The 5GHz band works at up to 867Mbps, while the 2.4GHz frequency tops 300Mbps, serving an incredible combined bandwidth of 1167Mbps. With the USB port supported, you can make AT-WR952AC a sharing center of your home.
Gigabit Ports/4*5dBi Antennas/2.4G and 5G Wireless Enhanced Module/USB Port,AT-WR952AC is a high-performance WiFi router designed with full Gigabit WAN and LAN ports, removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.
|
Product Specifications |
|
|
Hardware Parameters |
|
|
Chipset |
RTL8197FS-VE4-CG+8812BRH-CG+8367RB-VB-CG |
|
CPU frequency |
1000MHz |
|
Memory |
64MB or 128MB 16-bit DDR2 SDRAM |
|
Flash |
8MB |
|
WIFI |
2T2R 2.4GHz 802.11b/g/n, 300Mbps 2T2R 5.8GHz 802.11AC, 867Mbps |
|
Device Interfaces |

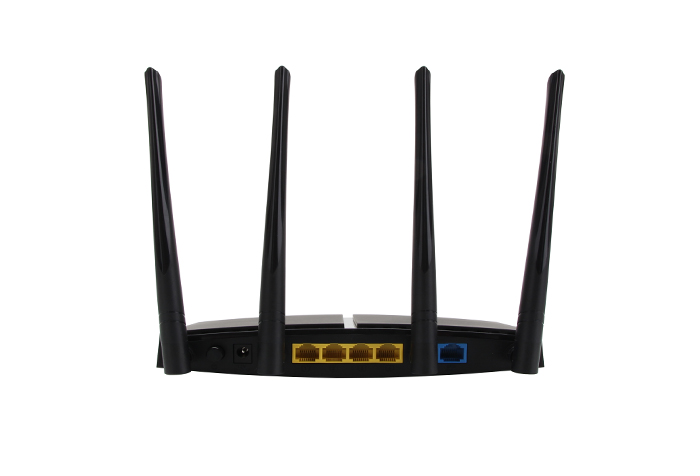

4 x RJ45 10M/100M/1000M LAN Ethernet interfaces |
|
1 x RJ45 10M/100M/1000M WAN Ethernet interfaces |
|
|
1 x reset button |
|
|
1 x WPS button |
|
|
1 x Power jack |
|
|
1 x Power switch |
|
|
1X USB 2.0 |
|
|
WIFI Antenna |
2 x 5dBi external 2.4G antenna 2 x 5dBi external 5.8G antenna |
|
WIFI Features |
|
|
Standard |
802.11b/g/n/ac |
|
11N: 2.4~2.4835GHz 11AC: 5.150~5.825GHZ |
|
|
Korea、Japan、ETSI、FCC channels can be selected |
|
|
Modulation schemes |
OFDM = BPSK,QPSK, 16-QAM, 64-QAM 256-QAMc |
|
DSSS = DBPSK, DQPSK, CCK |
|
|
Transfer Rate |
HT20: up to 144 Mbps HT40: up to 300 Mbps VHT80: up to 866Mbps |
|
Software Features |
|
|
General |
RFC0768 UDP RFC0791 IP RFC0792 ICMP RFC0793 TCP RFC0826 Ethernet ARP RFC0894 IP over Ethernet RFC0922 Broadcasting Internet Datagrams
RFC0950 Internet Standard Subnetting IEEE802.3 Ethertype IEEE802.1p IEEE 802.11b IEEE 802.11g IEEE 802.11n RFC2516 PPP Over Ethernet (PPPoE) RFC1662 PPP in HDLC-like Framing RFC1332 PPP Internet Protocol Control Protocol RFC1042 A standard for the Transmission of IP Datagrams over IEEE 802 Networks IPoE (a.k.a IP over Ethernet over AAL5) DHCP server、client NAT,NAPT and ALG DMZ and Port forwarding(Virtual server) PPTP、L2TP VPN、OPENSWAN IPSEC VPN IGMP proxy and MLD for IPTV Logs and statistics TR-069 remote management Flexible and secure SPI Firewall, Denial of Service (DoS) protection Port filtering 、IP filtering and MAC filtering URL filter QOS Flow Control DDNS IPV6 Static route SNTP Date/time update from Internet Time Server WEB GUI Embedded AP with 4 SSIDs Wireless WDS Wireless Repeater Wireless client mode Separate authentication for each SSID Wireless schedule |
