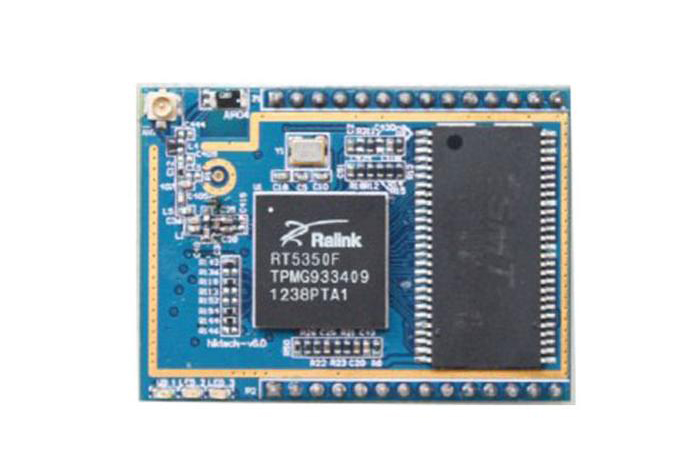

Model: ATO-5R03
WIFI Serial module
interface : SPI,UART,SDIO,I2S&I2C,GPIO,USB
150Mbps peak rate
2.4GHz IBS band
IEEE 802.11 b/g/n
Wifi control module
Main Features:
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
Peak rate 150Mbps,
Power management
Certification
Wi-Fi Certification: 802.11 b/g, WPA, WPA2, WMM, WMM-PS
WHQL, Cisco CCX,
FCC ,CE ,RoHS
Application :
WIFI Control ,
Smart home,
Smart device
|
Network Standard |
IEEE802.11n,IEEE802.11g,IEEE802.11b |
|
|
Wired:IEEE802.3,IEEE802.3u |
|
Wireless Transmission Rate |
11n: maximum up to 150Mbps |
|
|
11g: maximum up to 54Mbps |
|
|
11b: maximum up to 11Mbps |
|
Tracks number |
1-14 |
|
Frequency range |
2.4-2.4835G |
|
Emission power |
12-15DBM |
|
Interface |
One 10/100Mbps LAN/WAN multiplex interface, interface |
|
Antenna type |
Onboard antenna / External Antenna |
|
Functional Parameters |
|
|
WIFI work mode |
Client/AP/Router |
|
WDS Function |
Support WDS wireless bridge connection |
|
Wireless security |
Wireless MAC address filtering |
|
|
Wireless security function switch |
|
|
64/128/152 bit WEP encryption |
|
|
WPA-PSK/WPA2-PSK,WPA/WPA2 security mechanism |
|
Network Management |
Remote Web management |
|
|
Configuration file import and export |
|
|
WEB software upgrade |
|
Serial to Network |
|
|
Max transmission Rate |
230400bps |
|
TCP connection |
Max connection number>20 |
|
UDP connection |
Max connection number>20 |
|
Serial baud rate |
50~230400bps |
|
Other Parameters |
|
|
Status indicator |
Status indicator |
|
Environmental Standard |
Operating temperature:-20-70°C |
|
|
Operating humidity:10%-90%RH(Non-Condensing) |
|
|
Storage temperature:-40-80°C |
|
|
Storage humidity:5%-90%RH(Non-Condensing) |
|
Additional properties |
Frequency bandwidth optional:20MHz,40MHz,auto |
