Description

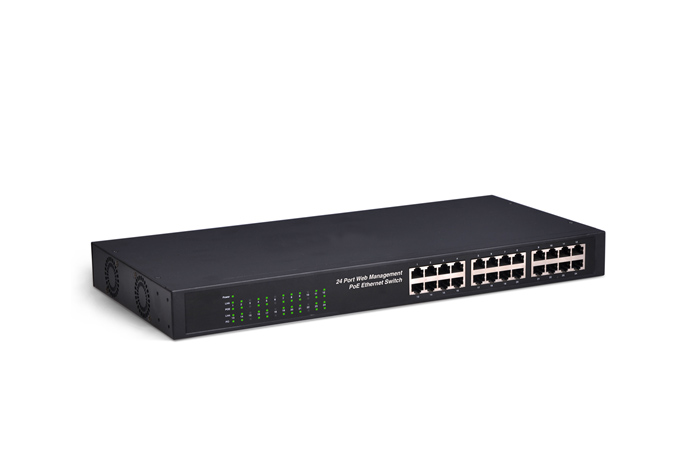

   AT-M2024-POE 24-port 10/100M Desktop POE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. These POE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

   AT-M2024-POE is smart switch, and can be configured by web based interface. Including administrator, port management, VLAN setting, each port statistics, trunking setting, QoS setting, security filter, configuration/ backup/recovery, miscellaneous, log out, and so on.

Features

Ø   Supports PoE power up to 28W for each PoE port

Ø   Supports PoE power up to 140W for all PoE ports

Ø   Supports PoE IEEE802.3at compliant PDs

Ø   Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode

Ø   8K entry MAC address table of the AT-M2024-POE with auto-learning and auto-aging

Ø   Supports WEB management interface

Ø   LED indicators for monitoring power, link, activity and speed

Ø   Internal power adapter supply

Specification
